| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | SINOCOREDRILL |
| Chứng nhận: | ISO9001 |
| Số mô hình: | CR-18A |
| Số lượng đặt hàng tối thiểu: | không áp dụng |
|---|---|
| Điều khoản thanh toán: | L/C,T/T |
| Thương hiệu: | SINOCOREDRILL | kiểu: | Máy khoan lõi bề mặt |
|---|---|---|---|
| Động cơ Diesel: | QSB 6.7-C240-30 | Tối đa. Mô -men xoắn: | 6400 N·m |
| công suất khoan: | Trụ sở chính 1400M | đột quỵ cho ăn: | 3700mm |

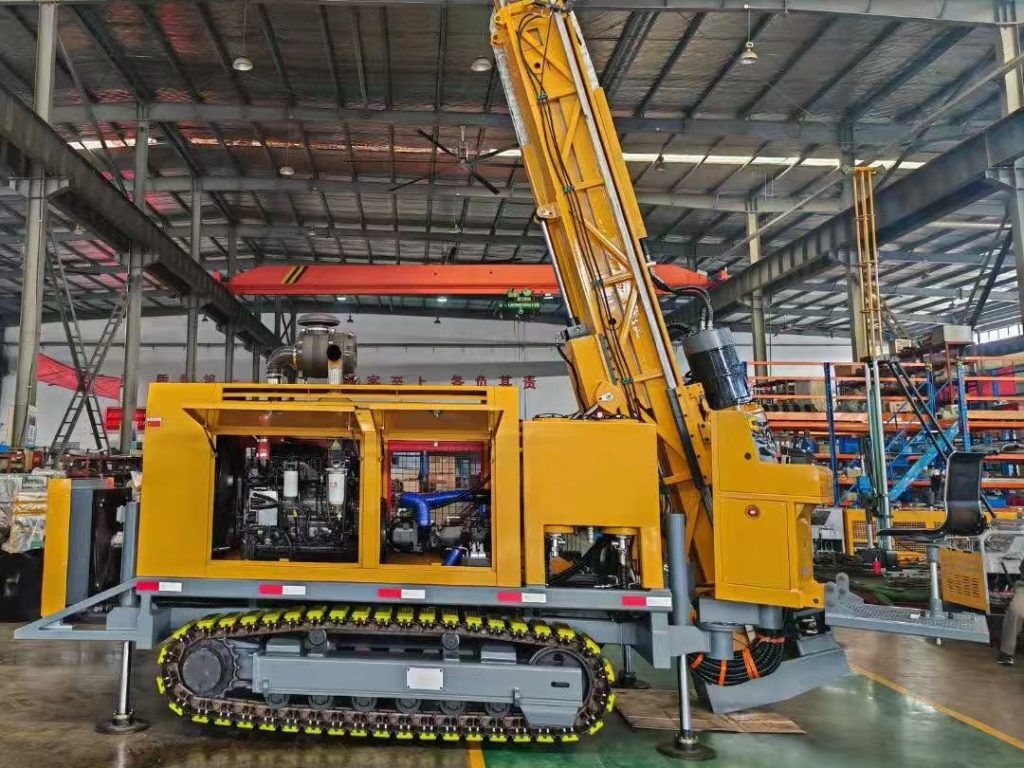

The CR-18A is a high-torque, deep-hole full hydraulic surface core drill rig designed and built by Jiangsu Sinocoredrill. It is specially developed for solid mineral exploration, geological prospecting, deep coring, and engineering investigation. With strong power, stable feeding, reliable clamping, and convenient operation, it supports standard wireline coring sizes including BQ, HQ, NQ, and PQ, making it an efficient drilling platform for complex field conditions.
| Item | Specification |
|---|---|
| Engine | QSB 6.7-C240-30, 178 kW / 2200 rpm |
| Max. Torque | 6400 N*m |
| Rotation Speed | 0-1250 RPM (3-step infinitely variable) |
| Main Hoist Line Pull | 120 kN |
| Feeding Stroke | 3700 mm |
| Mast Height | 9.5 m |
| Mud Pump | 250 L/min, 8.0 MPa |
| Operating Weight | 12 ton |
| Transport Dimension | 6235×2230×2490 mm |
| Travel System | Steel crawler |
Sinocoredrill CR-18A focuses on deep hole, high power, stability and ease of use, providing a highly reliable drilling solution for geological and mining exploration.
